import ograph.ofig as ofig
import ograph.oplot as oplot
import ograph.oconfig as oconfig
import matplotlib.pyplot as plt
import numpy as np

Plotting in 3 Dimensions

OPlot is built upon a set of 3D plotting utilities. These utilities have been continuously enhanced and polish across versions.

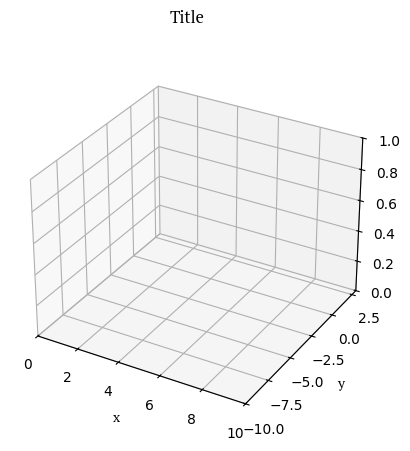

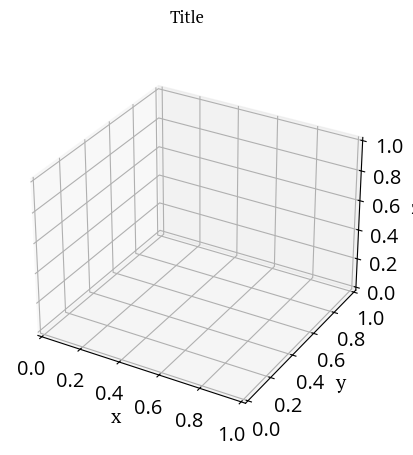

Several utilities in ograph.ofig can create and check figures. To initialise a figure in 3D, let’s call .fig3 to create it!

ofig.fig3(xlim=(0, 10),
        ylim=(-10, 3),
        zlim=(0, 1))
ofig.annotate("Title", "x", "y", "z")
plt.show()

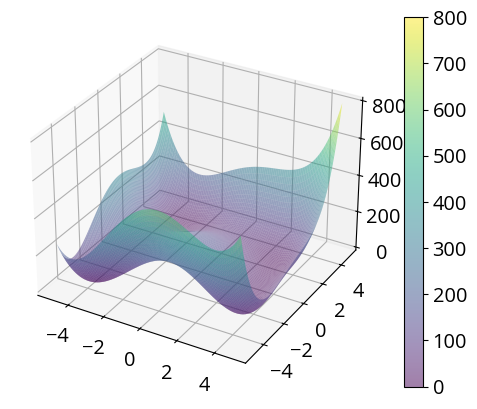

Use plot_wireframe for wireframe plots, and plot_surface for surface plots.

def himmelblau(x, y):
    return (x ** 2 + y - 11) ** 2 + (x + y ** 2 - 7) ** 2

ofig.fig3()
oplot.surface(himmelblau, (-5,5), (-5,5), alpha=0.5)
plt.show()

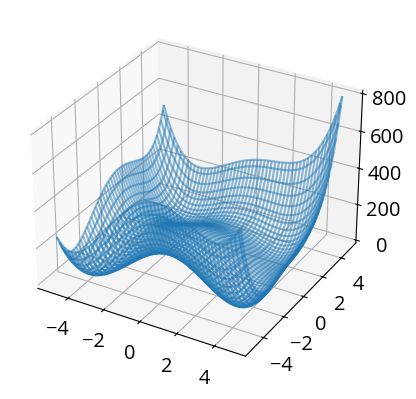

def himmelblau(x, y):
    return (x ** 2 + y - 11) ** 2 + (x + y ** 2 - 7) ** 2
ofig.fig3()
oplot.wireframe(himmelblau, (-5,5), (-5,5), alpha=0.5)
plt.show()

ofig.fig3()
oplot.contour(himmelblau, (-5,5), (-5,5), levels=100, alpha=0.5)
plt.show()

import ograph.ofunc as ofunc
from scipy.spatial import ConvexHull, distance #type: ignore

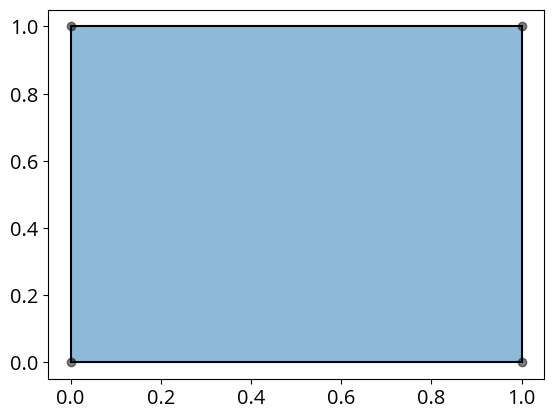

fig = plt.figure()
ax = plt.axes()
oplot.chull(ofunc.unit_square)

fig = plt.figure()
ax = plt.axes(projection="3d")
oplot.chull(ofunc.unit_cube)

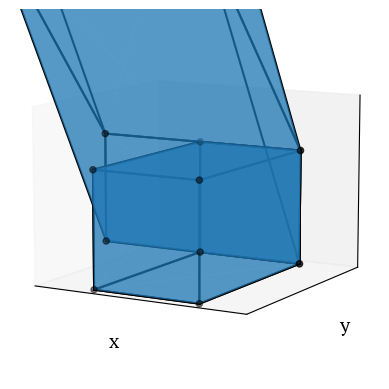

transform = np.array([
    [2,0,0],
    [0,1,0],
    [0,3,1]
])

source = ofunc.unit_cube.T

new_unit = transform.dot(source).T
# np.matmul(transform, source)
fig = plt.figure()
ax = plt.axes(projection="3d")
ax.view_init(10, 120)
ax.set_zlabel("z", fontname = 'PT Serif')
ofig.annotate("", "x", "y", "z")
ax.set_xticks([])
ax.set_yticks([])
ax.set_zticks([])
ax.set_xlim3d(-0.5, 1.5)
ax.set_zlim3d(0, 1.5)
for side in ['top','right','bottom','left']:
    ax.spines[side].set_visible(False)
ax.tick_params(axis='both',which='both',labelbottom=False,bottom=False,left=False)


oplot.chull(ofunc.unit_cube)
oplot.chull(new_unit)

---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
Cell In[8], line 15
     13 ax.view_init(10, 120)
     14 ax.set_zlabel("z", fontname = 'PT Serif')
---> 15 oplot.annotate("", "x", "y", "z")
     16 ax.set_xticks([])
     17 ax.set_yticks([])

AttributeError: module 'ograph.oplot' has no attribute 'annotate'

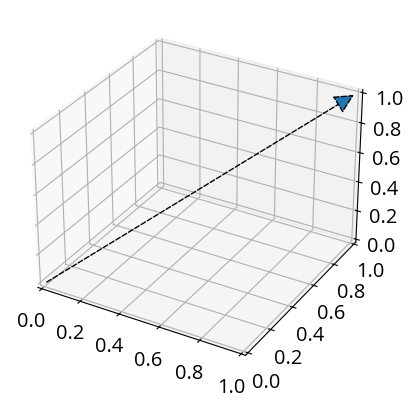

Plot an arrow with oplot.arrow.

ofig.fig3()
oplot.arrow((0,0,0),
         (1,1,1))
plt.show()

from ograph.ofunc import himmelblau

ofig.fig2()
oplot.contour(himmelblau, (-6, 6), (-6, 6), cmap="Spectral", colorbar=False)
plt.show()

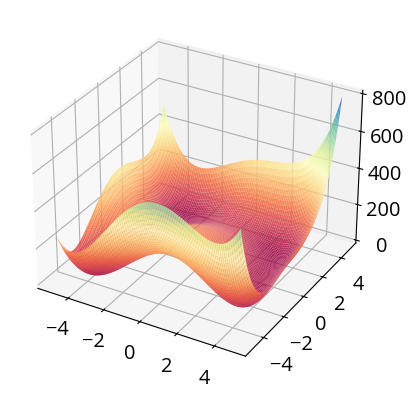

ofig.fig3()
oplot.surface(himmelblau, (-5, 5), (-5, 5), cmap="Spectral", colorbar=False)
plt.show()
